Webhook & Condition component

Webhook & Condition component

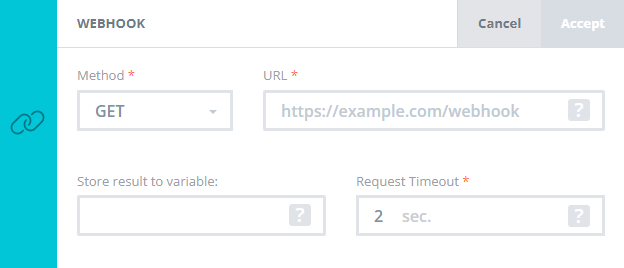

We are introducing a new component for the Dial plan: Webhook. This allows you to receive the call data of an incoming call to a Dialplan. In the Webhook component, you can add the URL of your server and as soon as the incoming call reaches the Webhook in the Dialplan, you immediately receive the call data. Once the Webhook receives a response from the server, further routing of the Dialplan is performed.

Examples

The combination of the new WEBHOOK and CONDITION component gives a completely new dimension to the customer's telephony solution. Many integrations are possible, for example:

  • Check in the CRM system whether the customer has outstanding invoices; if so, route the call to Finance;

  • Check in the CRM system whether the customer has a pending ticket; if so, route the call to the person assigned the ticket;

  • If the caller is calling for the second time, route the call to the same colleague who answered the first incoming call.



Parameters

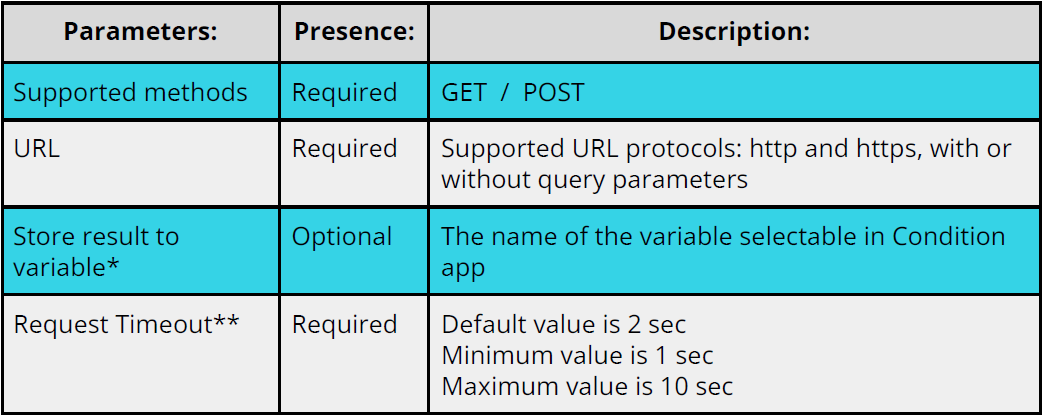

The following parameters are included in the Webhook component settings:


*This feature is described in detail under 'Update Condition component'
**During the incoming call, the caller will hear a dial tone till the request is answered or till the maximum value of the Request Timeout is reached.

Request data

Note: The request data is sent only with the POST request. The request data coming to the URL are the following:

  • Company ID

  • Dial plan ID

  • Dial plan internal number

  • Dial plan external number

  • Callee number

  • Caller number (number or SIP account)

  • Call uuid (ID of a call in Kwebbl platform)

  • Phonebook caller name

  • RTA Call ID (RTA style call ID, will be obsolete after CDRs 2.0)

  • SIP Call ID (SIP signalling call ID)

  • Timestamp of the event

  • Timestamp of the call start (the timestamp the call came into the Dial plan)

Example request body:

{
  "com_id": "42f30becd4ea93edd284e059427b5ee0",
  "dp_id": "42f30becd4ea93edd284e059427cf1f7",
  "dp_in_number": "1003",
  "dp_ex_number": "31102380095",
  "callee_number": "31102380095",
  "caller_number": "31152026057",
  "uuid": "b587f4ee-718d-11ed-88ee-b97829e8fee4",
  "phonebook_caller_name": "",
  "event_time": "1669908899250",
  "call_start_time": "1669908896814",
  "rta_call_id": "8a5d5db451e9-6bd98ab0066f"
  "sip_call_id": "lsjuf8l09juq1i0a9vai"
}


Update CONDITION component

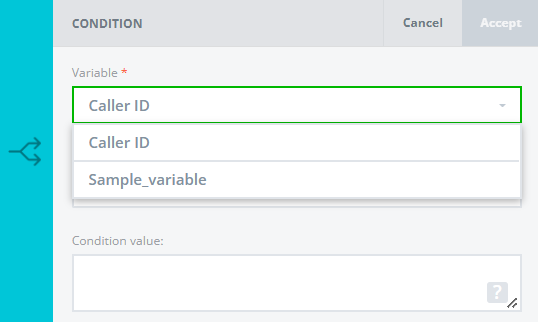

The variable set in the WEBHOOK component is added to the CONDITION component. Based on the response text-body received from the server set in this Webhook, it is now possible to set different call routes.

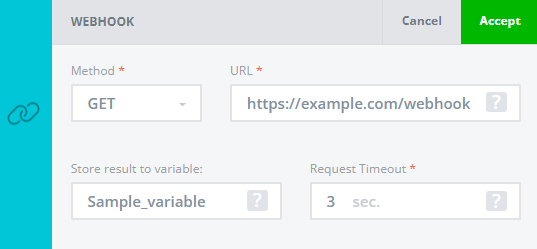

The WEBHOOK variable set in the Dial Plan or Choice menu (IVR) becomes available in the CONDITION component and is executed only if set after the Webhook component. In other words, all variables, which are set in the Webhook components before the CONDITION, appear in that CONDITION component. If the variable is not set, it does not appear in the CONDITION component. The variable must be unique within one DIAL PLAN or IVR/SUBMENU.

Notes:

  • The shorter the timeout is set, the faster the caller will get to the next action in the Dial plan if there is no response from your server.
  • The Webhook component is only available in a Business Dialplan and IVR. In the Personal Dial plan the Webhook is not available.
